Solar Panel

Jeniüs Ⅳ Monofacial Jeniüs Ⅳ Bifacial Jeniüs Ⅲ Monofacial Jeniüs Ⅲ Bifacial Jeniüs Ⅱ Monofacial Jeniüs Ⅱ Bifacial
  • Jeniüs Ⅲ Monofacial PV Module 395W-555W
  • JT SEh 108 Cells / JT SGh 144 Cells

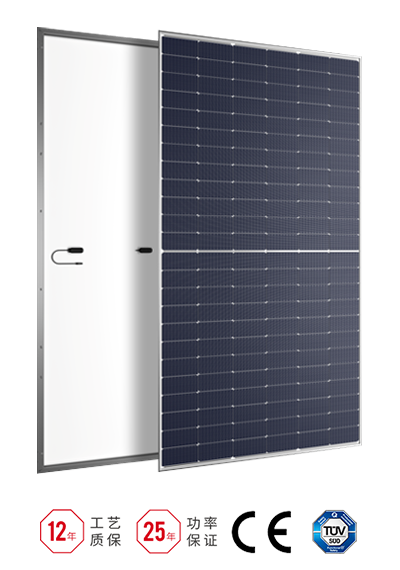

    144 cells Mono PREC Module, with Half-cut design and mature MBB tech, maximum power output 555W, is perfect for ground-mounted、industrial and commercial facilities and residential PV projects.
  • Module
    Split module design, 1/4 Rs loss; Current in half, lower hot spot temperature
  • Cell 91 x 182 mm
    MBB Mono PERC cells, with round solder strip, enhance power generation efficiency
  • Glass 3.2 mm
    High strength and transparency coated tempered glass
  • Frame 30 mm
    Ultra-strong anodized aluminum alloy frame, high mechanical load
  • Junction Box IP68
    High waterproof and dustproof level, higher security
  • Cable 4.0 mm2
    Special PV cable with high transmission performance, lower power loss



JT SEh 395W-415W   JT SGh 540W-555W
  • 1
  • 2

  • 1
  • 2

Cells：108 [2x(6x9)]

Module Dimensions：1722 x 1134 x 30 mm

Module Weight：20.5 kg

   Cells：144 [2x(6x12)]
Module Dimensions：2279 x 1134 x 35 mm
Module Weight：26.8 kg




Note:The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement, Jetion
Solar (China) Co., Ltd. reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most
recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase
and sale of the products described herein.
Download
Product datasheet
JT SEh 395W-415W JT SGh 540W-555W

Product Warranty

Lmited Warranty - Conventional module

Installation Manual

Conventional Modules

Certifications

CE Certificate TüV Certificate

Do you want to buy the products? Please contact us.
