Solar Panel

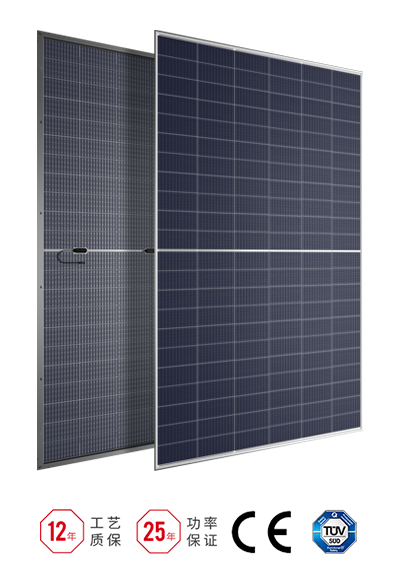

Jeniüs Ⅳ Bifacial PV Module 530W-665W
JT SZk(B) 110 cells / JT SIk(B) 120 cells / JT SLk(B) 132 cells
High efficiency Mono PERC Bifacial cells , with proven Dual-galss tech, increase system generating capacity. Up to 25% more yield from rear side in different cases.
Module
Bifacial dual glass design, maximum 80% bifaciality, additional 25% more yield from rear side
Bifacial Cells 210 x 105mm
MBB Mono PERC bifacial cells, with round solder strip, enhance power generation efficiency
Glass 2 mm
High strength and transparency coated tempered glass
Frame 35 mm
Ultra-strong anodized aluminum alloy frame, high mechanical load
Junction Box IP68
High waterproof and dustproof level, higher security
Cable 4.0 mm2
Special PV cable with high transmission performance, lower power loss

JT SZk(B) 530W-550W

JT SIk(B) 580W-600W

JT SLk(B) 645W-665W

Cells：110 [2x(11x5)]

Module Dimensions：2384×1096×35 mm

Module Weight：32.6 kg

Cells：120 [2x(10x6)]
Module Dimensions：2172×1303×35 mm
Module Weight：35.3 kg

Cells：132 [2x(11x6)]
Module Dimensions：2384×1303×35 mm
Module Weight：38.4 kg

Note:The specification and key features described in this datasheet may deviate slightly and are not guaranteed. Due to ongoing innovation, R&D enhancement, Jetion

Solar (China) Co., Ltd. reserves the right to make any adjustment to the information described herein at any time without notice. Please always obtain the most

recent version of the datasheet which shall be duly incorporated into the binding contract made by the parties governing all transactions related to the purchase

and sale of the products described herein.

Download

Product datasheet

JTSZk(B) 530W-550W

JT SIk(B) 580W-600W

JT SLk(B) 645W-665W
